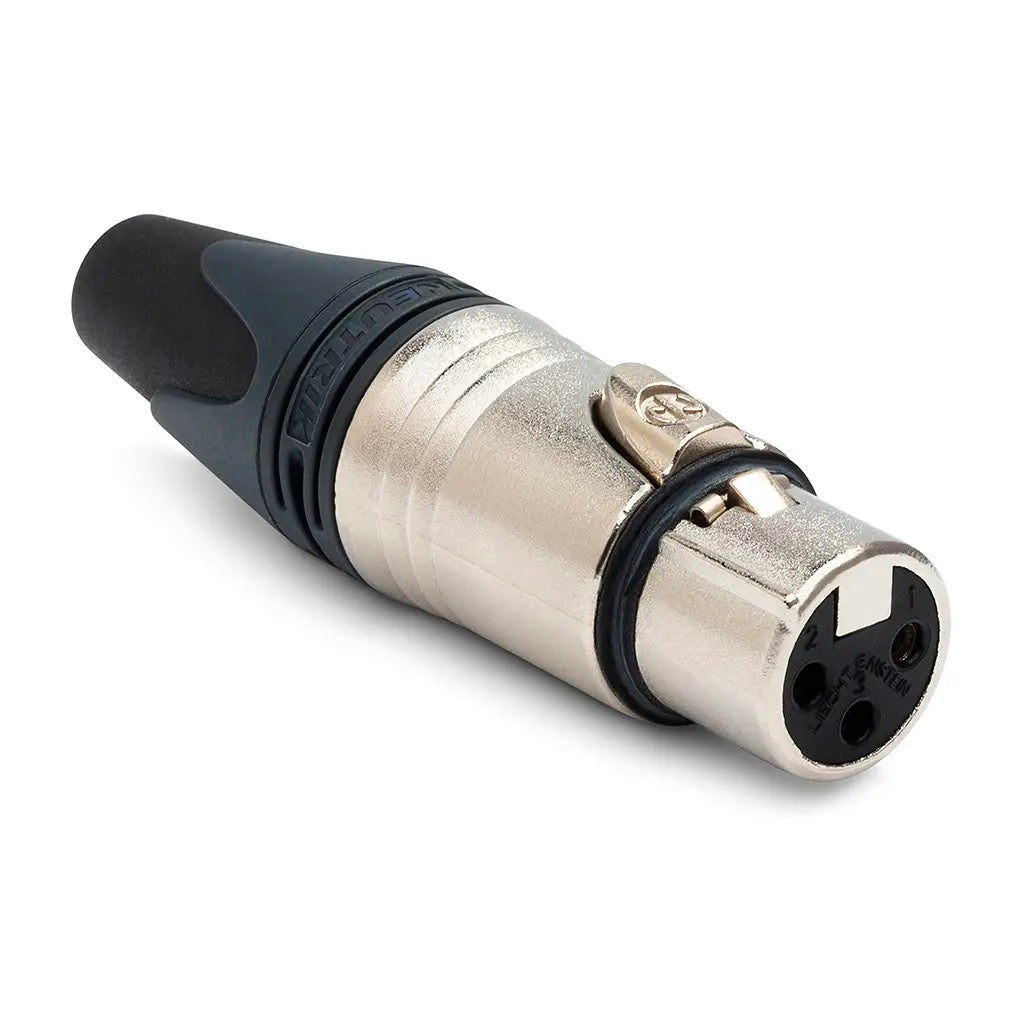

Neutrik NC3FXX 3-pin XLR cable socket
The Neutrik NC3FXX is a high-quality 3-pin XLR cable connector featuring a nickel-plated housing and silver-plated contacts. As part of the XX series, this connector offers numerous improvements over the previous generation, setting new standards in reliability and durability.
Highlights:
-
Unique cage contact: Reduces contact resistance, improves conductivity and minimizes wear of the mating contact.
-
Solder mask: Prevents solder from flowing into the mating area, increasing reliability.
-
Ergonomic locking handle: Larger locking handle for easier handling and operation.
-
Additional grounding contact: Ensures optimal housing connection.
-
Increased tensile force: Improved collet design for stronger cable strain relief and easier installation.
-
Kink protection: Polyurethane sleeve protects the cable from bending stress at the connector end.
-
Color coding: Options for color coding and marking using colored rings and clamping sleeves.
-
Durable housing: Robust die-cast metal housing with internal, protected thread.
-
Ergonomic design: Slim and handy, for easy and comfortable use.
Technical data:
-
Connection type: XLR, female
-
Electrical properties: Capacitance between contacts ≤ 4 pF, Contact resistance ≤ 3 mΩ, Insulation resistance > 10 GΩ
-
Mechanical properties: Cable diameter 3.5 - 8.0 mm, service life > 1000 mating cycles, locking: Latch lock
-
Material: Housing made of zinc die-cast with nickel coating, contacts made of bronze with 2 µm silver coating
-
Environment: Operating temperature range from -30 °C to +80 °C, protection class IP 40
The NC3FXX XLR cable connector is the ideal choice for professional audio applications that require a reliable and durable connection.
