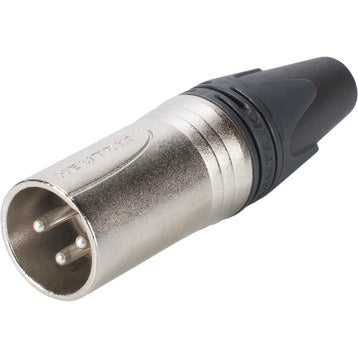

Neutrik NC3MXX 3-pin XLR cable connector
The Neutrik NC3MXX is a high-quality 3-pin XLR cable connector featuring a nickel-plated housing and silver-plated contacts. As part of the XX series, this connector offers enhanced robustness and reliability, further advancing the globally accepted standard for XLR connectors.
Highlights:
-
Improved robustness: Male connectors without "locking windows" for increased durability.
-
Increased tensile force: Improved collet design for stronger cable strain relief and easier installation.
-
Kink protection: Polyurethane grommet protects the cable from bending stress at the connector end.
-
Ergonomic design: Slim and handy design for easy handling.
-
Durable housing: Robust, durable die-cast zinc housing with internal, protected thread.
-
Versatile color coding: Color coding and marking options using colored rings and clamping sleeves.
Technical data:
-
Connection type: XLR, male
-
Electrical properties: Capacitance between contacts ≤ 4 pF, Contact resistance ≤ 3 mΩ, Insulation resistance > 10 GΩ
-
Mechanical properties: Cable diameter 3.5 - 8.0 mm, service life > 1000 mating cycles, connection type: solder contacts
-
Material: Housing made of die-cast zinc with nickel plating, contacts made of brass with 2 µm silver plating
-
Environment: Operating temperature range from -30 °C to +80 °C, protection class IP 40
The NC3MXX XLR connector is the ideal choice for professional audio applications where reliability and durability are paramount.
