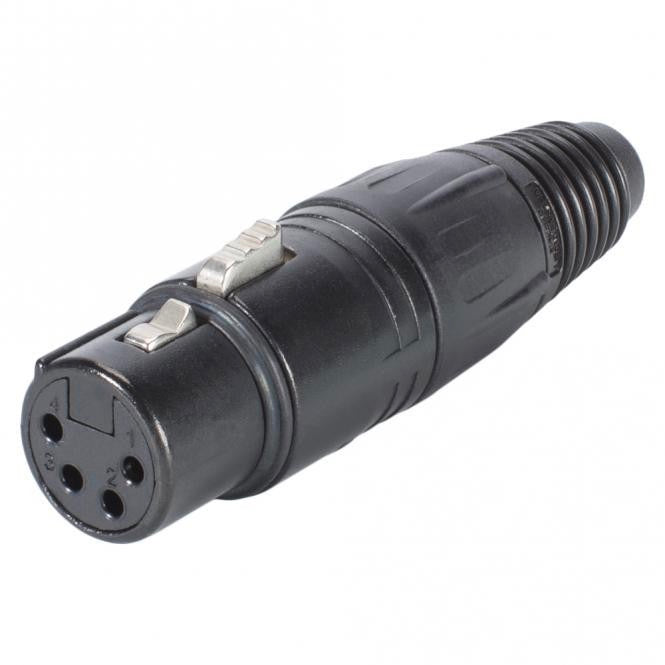

Neutrik NC4FX-B 4-pin XLR cable socket ( PHASE OUT )
The Neutrik NC4FX-B is a 4-pin XLR cable connector that, as part of the X-Series, has established itself firmly in the professional audio world due to its excellent build quality and ease of installation. This model is being discontinued and replaced by its successor, the NC4FXX-B. The NC4FX-B features a black chrome-plated die-cast housing and gold-plated contacts for maximum durability and optimal signal transmission.
Highlights:
-
Robust design: Durable die-cast metal housing for high protection and reliability.
-
Patented cable strain relief: Collet cable strain relief for secure cable hold with high pull-out force.
-
Kink protection: Rubber seal on the plug end protects the cable from bending stress.
-
Color coding: Possibility of color coding and marking using colored rings and clamping sleeves.
-
Easy assembly: Consists of only 4 individual parts and is quick and easy to assemble without screws.
Technical data:
-
Connection type: XLR, female
-
Electrical properties: Capacitance between contacts ≤ 7 pF, Contact resistance ≤ 3 mΩ, Insulation resistance > 10 GΩ
-
Mechanical properties: Service life > 1000 mating cycles, conductor cross-section max. 1.5 mm²
-
Material: Brass contacts with 0.2 µm gold alloy over 2 µm nickel, zinc die-cast housing with black chrome plating
-
Environment: Operating temperature range from -30 °C to +80 °C, protection class IP 40
The NC4FX-B offers a reliable and durable connection solution for professional audio applications, but is replaced by the improved NC4FXX-B model, which continues the high quality and functionality of the X-Series.
